Unlock Low Price

New 2024 Winnebago Ekko 22A

Motor Home Class C

Stock #2000061

Prescott AZ

AVAILABLE TO ORDER 2024 MODEL

downloadEEEE
downloadEEE
downloadEK
downloadEEEEEE

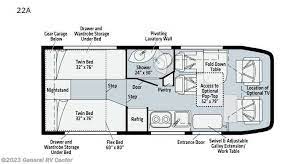

unit tech drawing 202306020505115368728300

1 of 6

Specifications

Sleeps	2	Length	23 ft
Ext Width	7 ft 3 in	Ext Height	10 ft 6 in
Int Height	6 ft 8 in	Hitch Weight	5000 lbs
GVWR	11000 lbs	Fresh Water Capacity	50 gals
Grey Water Capacity	51 gals	Fuel Type	Gasoline
Engine	3.5L EcoBoost V6	Chassis	Ford AWD Transit
Fuel Capacity	31 gals	Wheelbase	156 in
Available Beds	Two Twin	Refrigerator Type	Single Door Compressor Driven 12V
Refrigerator Size	5.3 cu ft	Cooktop Burners	2
Shower Size	24" x 30"	Number of Awnings	1
Axle Weight Front	4630 lbs	Axle Weight Rear	7275 lbs
LP Tank Capacity	40 lbs	Water Heater Type	Truma AquaGo Tankless Comfort Plus
AC BTU	13500 btu	Basement Storage	65.3 cu. ft.
Awning Info	13' Power with LED Lighting and Bluetooth Control	Gross Combined Weight	15000 lbs
Shower Type	Wet/Bath Shower	Electrical Service	30 amp

Description

Winnebago Ekko AWD Class C gas motorhome 22A highlights:

Under-Bed Storage
Heated Gear Garage
Swivel Work Table
Fold-Down Table with Seating
Twin Beds with WinnSleep System

This Ekko all-wheel drive Class C gas motorhome is just unbelievably functional! Not only do you have plenty of storage space for all of your gear with the gear garage, under-bed storage, pantry, and 5.3-cubic foot refrigerator, but you also have a 24" x 30" wet bath with a pivoting lavatory wall so that you can stay clean without having to stop at rest areas along the way. The cab area is excellently appointed with a radio/rearview monitor system, swivel/recline cab seats, and many driving safety features. Since the cab seats can swivel, you can use them as another place to sit down and eat at the fold-down table, and you can also use the swivel/adjustable work table for the passenger cab seat or as an extended countertop in the kitchen. Above the dining area is an access point to the optional pop-top sleeping area which would come in handy if you travel with multiple people.

With the efficiency of a camper van, the capacity of a Class C coach, and the enhanced capability of AWD, the Winnebago Ekko Class C gas motorhome is ready to change the way you travel! You will be ready for all sorts of weather with the insulated water service center and heated holding tank compartment, and you will also be ready to camp just about anywhere with the three solar panels and Cummins Onan® QG 2,800i gas generator. The heated gear garage has an L-track cargo tie-down system, and the RAM Tough-Track mount is an innovative way to mount a variety of different devices. The Ekko also has some very accommodating features that are included in its list of options, like the optional batwing awning, pop-top sleeping area with FROLI sleep system, luggage rack, and exterior kitchen.

Features

Standard Features (2024)

Chassis

Ford® AWD Transit Chassis
3.5L EcoBoost® V6 gas engine, 10-speed automatic Selectshift® transmission with overdrive
4-wheel anti-lock disc brakes
High-intensity discharge (HID) headlamps
Trailer hitch 5,000-lb. drawbar/500-lb. maximum vertical tongue weight w/7-pin connector
Stylized performance wheels
Spare tire

Cab Conveniences

Radio/Rearview monitor system colored multi-function touchscreen with SYNC®, navigation, AM/FM stereo with HD/SiriusXM® capability, Apple CarPlay®, Android Auto™, Bluetooth®, dual USB ports and integrated rear camera display
FordPass™ Connect
Cab seats armrest, fixed lumbar support, headrest, recline, slide and swivel
Airbags driver, passenger
3-point seat belts
2 cab seat lounge cushions
Intelligent access system w/push-button start
Voice recognition, Traffic sign recognition, Intelligent speed assist and Intersection assist
Power windows
Power mirrors w/defrost and turn signals
Power assist steering w/tilt wheel
Adaptive cruise control
Lane-keeping assist
Pre-collision assist w/Automatic Emergency Braking (AEB)
Driver alert
Automatic rain-sensing wipers
Wiper activated headlamps
Auto headlamps w/high beam control
Blind spot monitoring
Tire pressure monitoring system
Sunvisors
Cab mat
Front wraparound curtain
Thermal cab divider wall panel

Interior

LED ceiling lights
Tinted dual-pane euro acrylic windows w/cassette shades
Dinette seating w/3-point seat belts
Pull-up/fold down table
Color touchscreen systems monitor panel
Vinyl flooring throughout
Satellite system ready
Amplified digital HDTV antenna
Roof wiring access port
Assist bar
RAM® Tough-Track™ Mount (dinette overhead)
110V, 12V, USB charging ports
Deluxe powered ventilator fan w/remote
Overhead accent lighting

Optional Interior Equipment

Entertainment system smart Blu-ray disc player, Bluetooth® soundbar and 24" HDTV
Front cab air mattress 30" x 65" w/support base, cordless pump, repair kit and storage bag

Galley

Laminate countertops
Microwave oven w/touch control
Pantry
2-burner LP range cooktop w/cover
5.3 cu. ft. (12V) single door compressor-driven 12V refrigerator/freezer
Stainless steel sink w/cover
Adjustable/removable table/counter extension/workstation

Bath

Medicine cabinet
Oxygenics® shower head
Dry/wet bath w/pivoting wall
Robe hook(s)
24" x 30" Shower w/wall surround
Shower curtain
Molded round sink w/single control faucet
Tissue holder
Swiveling cassette toilet

Bedroom

Twin beds w/WinnSleep™ System
Flex bed kit
Wardrobe/drawer storage below beds
Metal clothes rod
Room divider curtain
Reading lights
110V, 12V, USB charging ports

Exterior

Heated gear garage w/L-track cargo tie down system, 110V/12V charging ports and LED lighting
Powered patio awning w/LED lighting and Bluetooth® control
Ladder (N/A w/pop-top)
LED porch light w/interior switch
Mud flaps

Optional Exterior Equipment

Pop-top sleeping area w/FROLI® sleep system and 110V/USB charging ports (N/A w/luggage rack, exterior kitchen, aluminum cab steps or ladder)
Batwing awning
Luggage rack (N/A w/pop-top)
Exterior kitchen w/chest style 12V refrigerator/freezer, 2-burner LP cooktop, flip-up counter extension, quick-connect faucet, collapsible sink, and LP quick-connect hose (N/A w/pop-top)
Option to remove: Powered patio awning w/LED lighting and Bluetooth control
Option to remove: Exterior graphics

Heating & Cooling System

13,500 BTU air conditioner
Truma® VarioHeat™ comfort

Electrical System

Auxiliary start circuit
Automatic dual-battery charge control
Coach battery disconnect system
Dedicated second alternator to charge coach batteries
Exterior AC duplex receptacle
Exterior TV jack
Cummins Onan® QG 2,800i gas generator
30-amp power cord
(1) 320-amp-hour lithium ion battery w/Bluetooth control package and battery pack heating system
(2) 170-watt and (1) 115-watt solar panel/battery charger
2,000-watt pure sine wave inverter/80-amp charger (220-watts flexible surface panel w/optional pop-top)
2,000-watt pure sine wave inverter/80-amp charger

Optional Electrical Equipment

Option to remove: Cummins Onan QG 2,800i gas generator
Add (1) additional 320-amp-hour lithium ion battery (Generator delete mandatory with this option)

Plumbing System

Insulated water service center houses water center control panel, hooks, cable tv input, freshwater drain and portable satellite dish hook-up
Truma AquaGo® tankless comfort plus water heater w/recirculation pump
On-demand water pump
Cold water purification system (galley only)
Heated holding tank compartment
10' sewer hose
Shower drain pump
LPG accessory connection (patio area)

Safety

LPG leak, smoke and carbon monoxide detectors
Fire extinguisher
Ground fault interrupter
Upper and lower child seat tether anchors (dinette seating)
High-mount brake lamps
Fog lamps

Please see us for a complete list of features and available options.

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
